Aperçu /Produits/Machine de fabrication de boîtes modulaires/Thermoforming making Machine for Biodegradable Plastic Food Box Plastic Fruit Box Or Tray

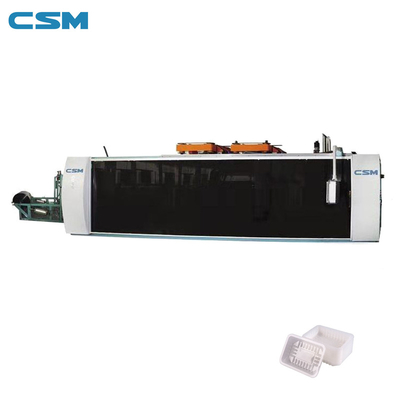

Thermoforming making Machine for Biodegradable Plastic Food Box Plastic Fruit Box Or Tray

$75,000.00/Pieces >=1 Pieces
Prix
Thermoforming making Machine for Biodegradable Plastic Food Box Plastic Fruit Box Or Tray
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Traitement du type: Machine en plastique de Thermoforming
Type en plastique: PVC, PICOSECONDE, PA, PP, ANIMAL FAMILIER
Taille de Max.Forming (millimètre): 120 mm
Largeur de formation (millimètres): 780 millimètres
Longueur de formation (millimètres): 700 MILLIMÈTRES
Vitesse de production (cycles/minute): 20-25cycle/min
Sortant-inspection visuelle: Fourni
Rapport des essais de machines: Fourni
Type de commercialisation: Produit nouveau 2020
Garantie des composants de noyau: 1 an
Composants de noyau: PLC, moteur, récipient à pression, vitesse, pompe
Pression atmosphérique (MPA): 0,6 MPA
Épaisseur de feuille (millimètres): 0.1 - 2,5 millimètres
Puissance de chauffage (kilowatts): 30 kilowatts
Air Comsumption (l/min): 130 l/min
L'eau Comsumption (l/min): 100 l/min
Condition: Nouveau
Type de produit: Boîte à aliments de préparation rapide
Tension: 380V ±10%
Dimension (L*W*H): L900CM*W220CM*H270CM
Poids (t): 7 T
Garantie: 1 an
Industries applicables: Hôtels, usine, usine de nourriture et de boisson, restaurant, magasins à la maison d'utilisation, de
Arguments de vente principaux: Productivité élevée
Emplacement de salle d'exposition: Le Vietnam, Pakistan, Inde, Sri Lanka, Nigéria
Produits finis: Boîte jetable à aliments de préparation rapide, boîte à fruit de salade, cosmétique de plateau, couv
Chaîne d'application: Conteneur de nourriture, maniveau de fruit, bloc supérieur, plateaux
Matériaux: Hanches, PVC, picoseconde, PA, COUPS DE POING, pp, Bopp, ENV, ANIMAL FAMILIER
Formation de la méthode: À travers (four à deux étages) la formation
Service après-vente fourni: Support technique vidéo, Pièces de rechange gratuites, Installation sur le terrain, mise en service
Après service de garantie: Support technique visuel, appui en ligne, maintenance sur le terrain de pièces de rechange, et servi
Emplacement de service local: Le Vietnam, Inde, Sri Lanka, Nigéria
Informations de base
Certification: ce
Conditions de paiement et expédition
Description de produit
Product Overview

Three Station Lunch Box Plastic Negative Pressure Machine

The machine combines forming, cutting, and stacking into process,which is widely used and acknowdged by most of our customer. It can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, egg tray, mobile phone tray & other blister tray, etc. The machine is completely driven by servo motor with features of stable operation, low noise, high efficiency and quality.
Technological process:
---Carrying material(cylinder drives the chain to work)
---heating(cylinder drives the electric furnace to lift in order to make a proof)
---pulling( cylinder drives the chain)
----lifting the lower die, falling the upper die(cylinder drives)
----vacuum forming(vacuum pump air admission )
---cooling(gas drives the spray gun to work, electric machinery drives the air
blowing)
----drawing of patterns(gas drives)
---pulling-cutting
---stacking on the line.
Product Paramenters
No.
Item
Data
1
Suitable Products
Disposable plastic lids,egg trays,clamshell boxes, containers, plates
2
Suitable Materials
PVC.PP.PET.PS.HIPS.PE.HDPE.PC.ABS.PLA sheet
3
Forming Size:
W780*L700mm
4
Thickness Range
0.1-2.5mm
4
Forming Area:
815mm
5
Max.Forming Depth
120mm
6
Industry Voltage
380V/50Hz (Three Phase, Four Wires)
7
Total Power/Actual power consumption
Heating oven Max. 85 KW, usually use 20-45KW/h
8
Max. Speed
20-25 Cycles per minute(Depending on material and thickness)
9
Max. Punching Force
80 Tons
10
Air Pressure
0.6MPa
11
Air Consumption
> 4000ℓ/min ( with Forming body )
12
Cooling Water
Normal Tap Water Recycle Cooling
13
Noise
<75DB
14
Machine Dimension
6000kg
Main Feature
A. This machine adopts integrated gas and electricity loading system.
B. Stainless steel pressure roller and automatic feeding (single roll material weight can reach 600-1000KG)
C. The pre-heating device is installed on both sides of the film.
D. There are multiple excessive rollers to ensure that the material will not running when stretching the sheet.
E. The heating furnace has forward and backward functions. It uses photoelectric eyes to detect the sag of the sheet after heating. When it exceeds a certain limit, it provides an alarm and has function of Exit the heating furnace to prevent the sheet from falling out of the heating furnace and causing fire.

Main Configuration
No.
Part
Brand
1
Vacuum Pump
Rietschle Germany
2
PLC
Delta Taiwan
3
Touch Screen
Delta Taiwan
4
Vacuum Solenoid Valve
SMC Japan
5
Temperature Control Module
AOYI
6
Auxiliary Relay
Schneider France
7
AC Contactor:
Schneider France
8
Air Switch
Schneider France
9
Transducer
Omron Japan
10
Linear Guide
Hiwin Taiwan
11
Oil-water Separator
Mindman Taiwan
12
Clamp Servo Motor
Delta Taiwan （4.5KW）
13
Upper mold Solenoid valve
Delta Taiwan
14
Lower mold Solenoid valve
Delta Taiwan
15
Decelerator
FALK  USA
16
Bearing
SKF Swiss
Related Product
Company Profile
Customer Networking
Contact Us
Looking forward to cooperating with you!
Contacts
Ms. Katy Tian
Email
katy_tian@csmformingmachine.com
Mob/Whatspp
+86 13681660491
Wechat
13681660491
Facebook
https://www.facebook.com/katy.tian.775/
Youtube
https://www.youtube.com/channel/UCzAUHVCnbT6b3HEDJEDo6EQ
Address
 Room 606-2 ,No. 799, Yinxiang Road, Changhui Tower, Jiading District, Shanghai, China
FAQ
Q1: Are You Manufactory or Trade Company?

A: We are the 100% Manufactory specialized in thermoforming industry for plastic disposable packaging over 10 years with 1,000 square meters workshop area, located in Huzhou, Zhejiang Province, which it's 2 hours by car from Shanghai Pudong Airport to our factory. You are warmly welcome to visit our factory.

Q2: What is the material you used? Is it food grade or eco friendly?

A: The main materials we used is PLA, PET, PP, PS, PVC, PC All the materials we used is food grade and eco friendly which pass ROHS, GRS, SGS,ISO9001,ect., EXCEPT PVC. PVC is not food grade materials. Mainly used to pack electronics and harware.

Q3: Can you provide OEM and ODM services?

A: We'll supply you the best quality and service and provide you with good advice beyond your requirements. The lines are easily for installation with low maintenance requirements.Yes. About OEM, you can customize machine such as printing your logo on, color and packaging. About ODM, our factory has a professional team with rich experience in the design and manufacture of plastic forming machines. Just tell us your idea and we will help to find the optimal solution.

Q4: Is there quality control when manufacturing the lines?

A: Certainly, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, making treatment on the roller surface and shaft, assembling, testing and packaging.

Q5: What's your strength comparing to the other supplier?

A: We'll supply you the best quality and service and provide you with good advice beyond your requirements. The lines are easily for installation with low maintenance requirements.
